Think about what travels through fiber optic cables. Bank transactions, hospital records, emergency calls, and video streams all move through incredibly thin strands of glass or plastic, often about the size of a human hair. But here’s the catch: those cables aren’t infinite single strands. They get cut, joined, and extended. Every connection point becomes a place where something could go wrong. And in networks that can’t afford downtime, “could go wrong” isn’t good enough.
So how do engineers create joints that won’t fail? A few methods exist, but one stands above the rest for critical applications. Fusion splicing works by melting two fiber ends together with precisely controlled heat, fusing them into a single continuous strand. Signal loss stays minimal, strength stays high, and the connection can sit untouched for decades without degrading. For infrastructure that absolutely has to work, there’s really no substitute.
Breaking Down the Process
Melting glass sounds simple enough. Heat glass, press it together, and let it cool. But in reality, each fiber must be stripped of its protective coating and cleaned thoroughly. Then comes the cleave, a controlled cut that creates a perfectly flat end face. The angle has to be nearly perpendicular. Any chips, cracks, or irregularities ruin the splice before it starts.
Once prepped, both fibers go into a specialized machine. Cameras and software align the cores automatically, adjusting position down to fractions of a micron. Then an electric arc fires. Temperatures hit thousands of degrees for just a split second. The glass melts, flows together, and fuses into one piece. When done correctly, the joint becomes nearly as strong as the original fiber itself.
Why Every Fraction of a Decibel Counts
Light loses energy as it travels through fiber. But every connection point adds more loss on top of the baseline. Mechanical connectors, the snap-together kind, typically introduce higher losses and degrade over time.
A well-executed fusion splice keeps loss incredibly low, often under 0.1 decibels per joint. Sounds tiny, right? But networks can have hundreds of connection points. Those fractions add up fast. Every bit of signal preserved at each splice point means data can travel farther without expensive amplification equipment.
Built to Last for Decades
Longevity matters in infrastructure. Fiber cables get buried underground, strung across oceans, and mounted on towers in remote locations. Nobody wants to dig up a cable five years later because a connection failed. Fusion splices eliminate most durability concerns. The joint is literally melted glass.
Once protected with a heat-shrink sleeve, a fusion splice can last 20, 30, even 40 years without maintenance. The Institute of Electrical and Electronics Engineers publishes reliability standards for fiber systems, and properly executed fusion splices consistently meet or exceed those benchmarks. For critical infrastructure, that kind of dependability isn’t optional. It’s required.
Used in More Places Than You’d Expect
Telecommunications is the obvious application. Long-haul networks spanning continents depend on fusion splicing to maintain signal quality across thousands of miles. But the technique shows up in plenty of other places. Data centers use it to build high-density internal connections. Hospitals rely on it for imaging equipment and patient monitoring systems. Military installations require it for secure, interference-resistant communications.
Even residential fiber internet involves fusion splices somewhere in the chain. The technician at the curb might use a mechanical connector for the final drop to a home, but the backbone feeding that neighborhood almost certainly uses fused joints. Critical links get the permanent solution. Less critical ones can tolerate alternatives.
The Machine Doesn’t Do Everything

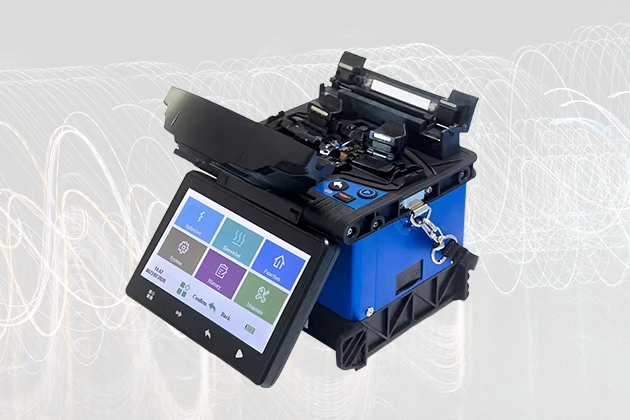

Modern splicers automate things like alignment, arc control, and loss estimation. You push a few buttons, wait, and it’s done. But the operator still makes or breaks the result. Fiber preparation matters enormously, and a bad cleave dooms the splice. Contamination on the fiber end also causes problems. Rushing through steps leads to subpar joints that fail down the road.
Experienced technicians know when something looks off. They maintain their equipment properly. The technology helps, but expertise still drives quality.
Ready for Whatever Comes Next
Bandwidth needs keep climbing, so the connections holding those networks together have to perform flawlessly for years. Fusion splicing delivers low loss, high strength, and proven reliability across every environment imaginable. When the data has to get through, this is how it happens.
